Huawei patents a complex hinge design for crease-free foldable smartphones

Recently, Huawei patented two foldable smartphone designs similar to the Galaxy Z Fold2 and Galaxy Z Flip. Now, another patent by the Chinese telecom giant imagines a complex hinge structure for foldable devices with the clamshell form factor.

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone Featured

This newly spotted foldable smartphone hinge design patent was filed by Huawei

Advertisement
Technologies with the WIPO (World Intellectual Property Organization) on April 16, 2019. However, it got approved and published only on October 22, 2020. That means this patent is older than the other two foldable designs by the company.

That said, this particular patent was first unearthed by WindowsUnited. We later confirmed it via Incopat and found its number to be WO2020210987A1.

EDITOR’S PICK: Huawei contributed over 220k jobs & paid over €6.6 bn in tax in Europe last year

The document for this patent goes into detail about a complex hinge design. In a nutshell, this design is meant to avoid creases, which is one of the many cons of current-gen foldable handsets. It achieves this by using a modular design.

With this hinge design, the OLED

Advertisement
panel contracts and expands when the phone is shut and opened like on the Motorola razr
Advertisement
and razr 5G. In other words, the screen is not completely folded when the device is closed. If implemented, this hinge design can provide a crease-free foldable smartphone experience.

1 of 6


Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 01

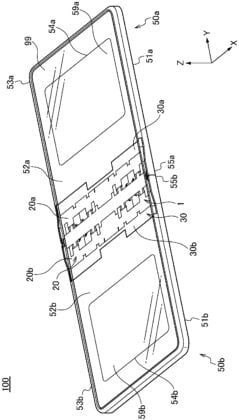

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 02

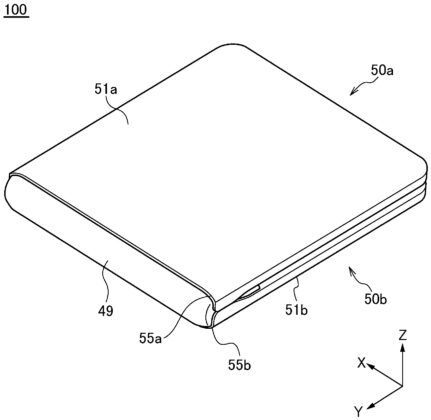

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 03

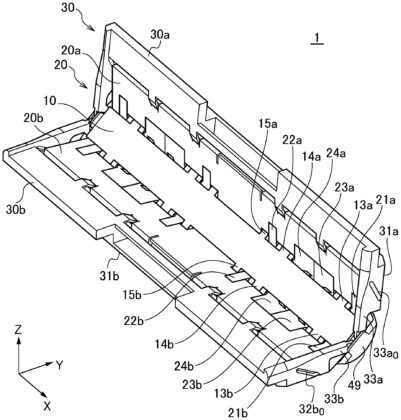

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 04

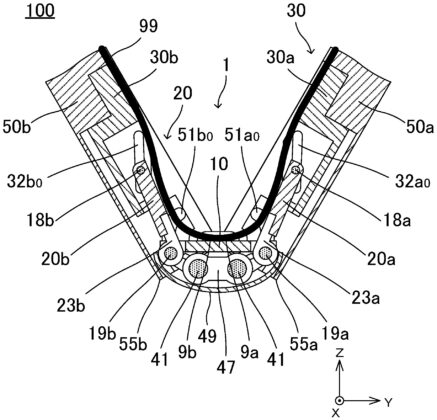

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 05

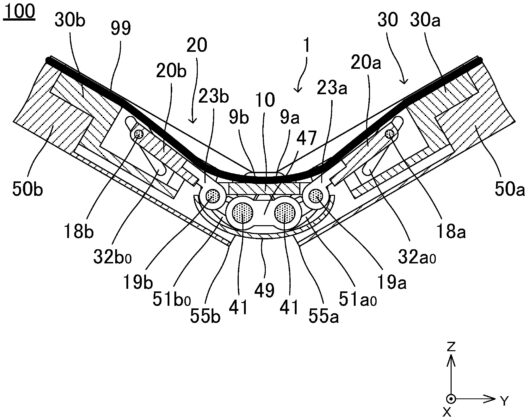

Huawei Complex Hinge Design Patent Crease-Free Foldable Smartphone 06

Having said that, Huawei’s diagrams showcase this hinge in a clamshell form factor. Hence, we don’t think the same hinge design can be implemented in foldables that unfold into a tablet.
